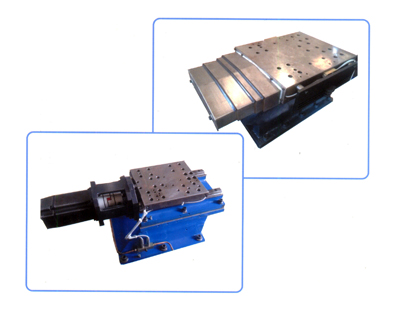

MACHINING SLIDES :



Linear Slided


MACHINING SLIDES APPLICATIONS :

  • Milling Operations
  • Drilling Operations
  • Tapping Operation
  • Boring Operation
  • Fine Boring

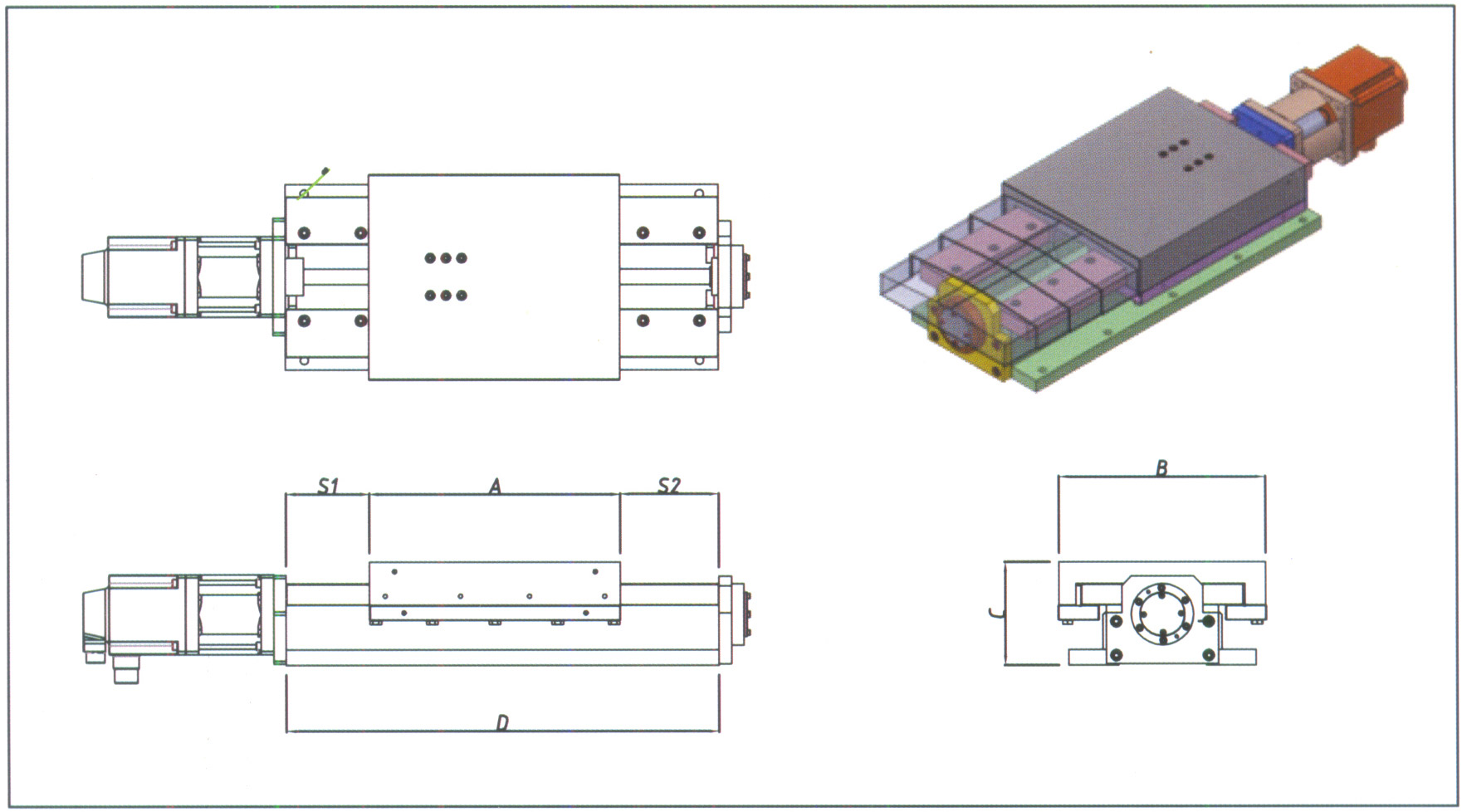

SLIDE DIMENSION DRAWING :



Slide Dimension Drawing


SERVO MACHIN SLIDE WITH HARDNESS GUIDE (HG) AND LINEAR GUIDE (LG)

SR.NO. MODELS A B C HG-LOAD (KG) LG-LOAD (KG)
1 SP-200 200 mm 200 mm 100 mm 75 65
2 SP-330 400 mm 330 mm 170 mm 125 115
3 SP-400 500 mm 400 mm 170 mm 150 125
4 SP-500 550 mm 500 mm 230 mm 225 200
3 SP-600 650 mm 600 mm 300 mm 275 225


D = S1 + A + S2 (Stroke = S1 + S2)

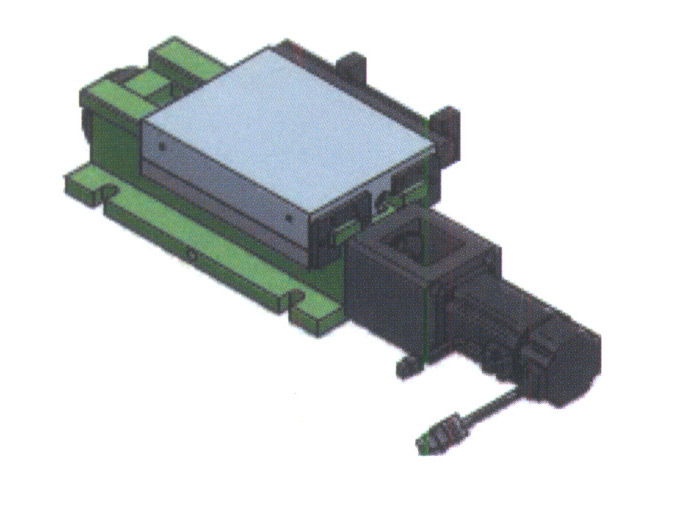

SP-HG (Hardend Guideways)

SP-HG

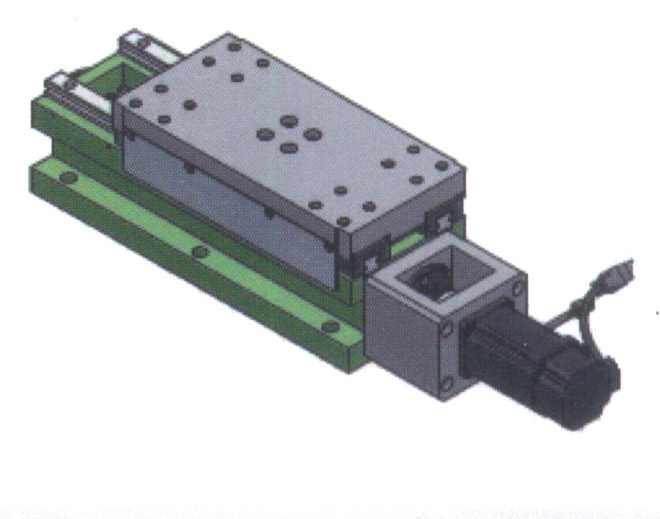

SP-LG (Linear Guideways)

SP-LG
