LINEAR SLIDES :



Linear Slided

The Linear Slides units incorporated tried and proven with linear polymer bearing in to compact assemblies combining sliding elements for low friction, Hardened contact surfaces for long life and minimum wear.

Application : Machine Parts or tools which require 'inline' motion can be readily mounted to the VN Mechanics Linear slides either on the surfaces provided at the slide bar end block, or on the housing when the slide bar end are fixed. Thus permitting the housing to move. VN Mechanics Linear actuator units have importance in wide range of automation applications including packaging equipments, pick and place, dispensing, welding, positioning limit Switches, t ables , complete assemblies, industrial cameras, TIJ and CIJ Printers


MI ME HE

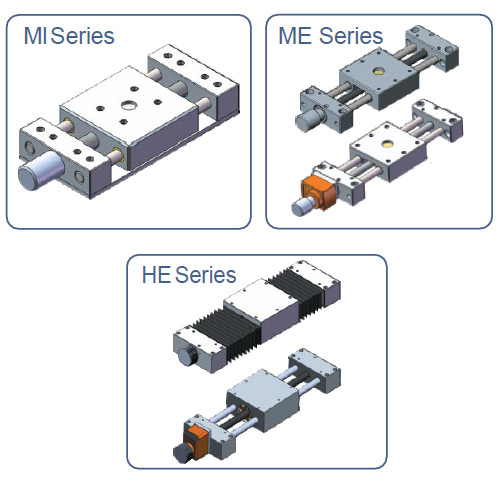

  • Ml, ME, HE - Series (Without Positioner Counter- Optional)
  • Very Compact and Versatile design
  • Max. load : 6000N
  • The carriage movement is carried out by turning knob
  • Sliding guide of special Polymer bearing
  • Material of construction Aluminum Duly Anodized /MS Blackodised.
  • Carriage sliding on precise Hard chrome bar.
  • Trapezoidal lead screw for maximum accuracy and minimum backlash on reversal 0.03m
  • Bellow -- Optional

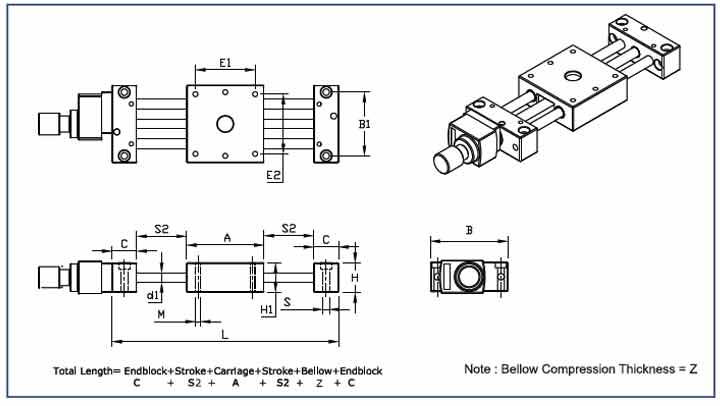

Dimension A B C d1 H S E1 E2 M H1 B1
MI - Series 50 50 15 6 15 4.5 30 30 M4 15 23
ME - Series 78 78 25 10 30 6.5 60 60 M6 30 64
HE - Series 127 127 50 16 50 6.5 114 80 M6 62 114

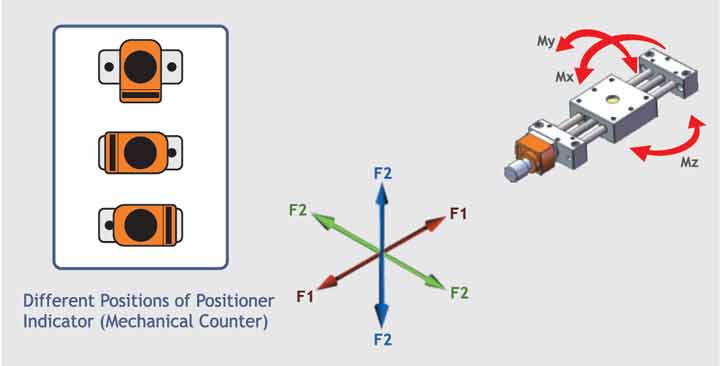

Models F1 [ N ] F2 [ N ] Mx [ Nm ] My [ Nm ] Mz [ Nm ] T[ °C ]
MI - Series 200 200 3.6 3.6 3.6 0-60
ME - Series 300 300 18 18 18 0-60
HE - Series 1000 1000 65 65 18 0-60


HB 801 Series

  • DC Permanent magnet motor, compact and handy
  • Speed from 4mm / sec. to 25mm / sec. as requested
  • Max. load : 6000N
  • Normal temp. range : 5°C to 40°C
  • Duty cycle : 10 % Max.
  • Read switch output signal
  • Built in Limit switch
  • IP Grade : IP 43
  • Certificate : CE
  • Voltage : 12V /24V
  • Stroke Length : 0 to 800mm
  • Widely apply to Industrial equipment, Medical and Furniture etc.
HB Series_801
HB Series_801

HB 806 Series

  • DC Mini Permanent magnet motor
  • Speed from 5mm / sec. to 80mm / sec. as requested
  • Max. load : 1200N
  • Normal temp. range : -40°C to +65°C
  • Duty cycle : 10 % with full load
  • Potentiometer feedback available
  • Built in Limit switch
  • IP Grade : IP 65
  • Certificate : CE
  • Voltage: 12V /24V /36V /48V
  • Stroke Length : 30 to 600mm
  • Widely apply to Industrial equipment, Sweeper, Instrument Aid
    Setting, Window Opener etc.

HB 808 Series

  • DC Permanent magnet motor, Firm structure, Durable
  • Speed from 5mm / sec. to 35mm / sec. as requested
  • Max. load : 7000N
  • Normal temp. range : -40°C to +65°C
  • Duty cycle : 25 % with full load in normal temperature
  • Potentiometer feedback available
  • Built in Limit switch
  • IP Grade : IP 65
  • Certificate : CE
  • Volt age : 12V /24V /36V /48V available
  • Stroke Length : 50 to 600mm
  • Overload Clutch protection
  • Widely apply to Industrial equipment, Special vehicle,
    solar tracking and the high load output conditions
HB Series_801
HB Series_801

HB 825 Series

  • DC Mini Permanent magnet motor
  • Speed from 5,10,15 mm / sec. (Optional)
  • Max. load: 2000N
  • Normal temp. range : -40°C to +65°C
  • Duty cycle : 25 % with full load
  • Hall feedback available
  • Built in Limit switch
  • IP Grade : IP 65
  • Certificate : CE
  • Voltage: 12V /24V /36V /48V
  • Stroke Length : 30 to 600mm
  • Low Noise
