Sealant Dispensing Machine

  • You Are Here :
  • Home
  • >> Linear Actuator

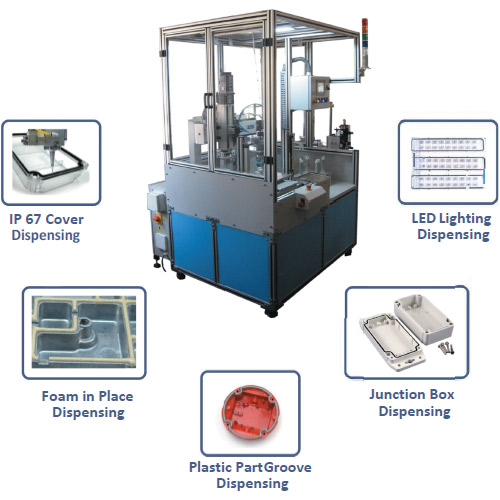

Dispensing Machine



Features



  • Dispensing Machine Variants : XYZ Axis robot (300X300X150mm) (400X400X180mm) (1200X1200X300mm)
  • Highly Precise ball screw and Servo motor driven XYZ robot
  • Advanced electronics with touch base HMI
  • Job presence to ensure job preset before dispensing
  • Dispersing fixtures ensures proper location of component during dispensing
  • Pump empty alerts
  • Material Consumption & flow tracking possible
  • User friendly HMI with authorization
  • Integration with SCADA possible
  • Compatible with various Dispensing pump makes

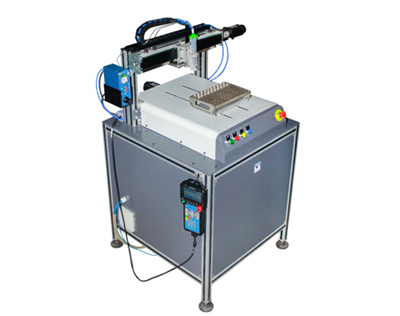

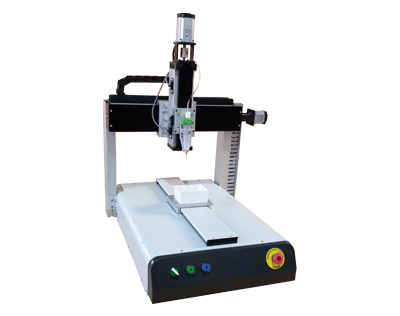

DESKTOP 3 AXIS DISPENSING ROBOT



Dispensing Machine, Dispensing Solutions

Automated 3 Axis Desktop Dispensing System for Efficient and Consisting applications of adhesive and sealants



Features:

  • Programmable 3 Axis robot
  • Easy Cartridge removal and insertion
  • Parking station facility
  • Capable of continuous, dots and line dispensing paths
  • Able to dispense on various profile and shapes
  • Small Footprint
  • Suitable for wide range of fluid dispensing applications
  • Rugged and Reliable construction
Specifications VN 200 VN 300 VN 400
Power Supply 100V - 240V AC
Power Consumption 500 W
Moving Range X Axis (mm) 200 300 400
Moving Range Y Axis (mm) 300 400 500
Moving Range Z Axis (mm) 100 150 150
Speed Range X/Y Axis 0 to 400 mm/Sec.
Speed Range Z Axis 0 to 200 mm/Sec.
Repeatability Accuracy X/Y /Z Axis 0.03 to 0.04mm
Loading Weight Base 5 Kg. 8 Kg. 8 Kg.
Head ON Z axis 4 Kg. 4 Kg. 4 Kg.
Working Ambient Temp 0 to 40°C
Dimension Approx. (WXDXH in mm) 350X350X520 450X590X630 550X613X630


Advantage with VN: VN Provides total support, conceptualization, design, engineering and implementation support for customized automation in the dispensing process.

Typical applications :

  • Dispense dots of solder paste
  • Form - in - place gasket
  • Filling
  • Potting
  • Encapsulation
  • Bonding
  • Coating
  • Solar Module Dispensing
