XYZ Cartesian Robots

We are Manufacturer, Supplier, Exporter of Cartesian Robots, XYZ Cartesian Robots, Single Axis Robots, Multi Axis Robot Systems, Gantry 3 (Three) Axis Robots, XY Tables and our setup is situated in Satara, Maharashtra, India. Majorly we serve our customers from ALL OVER INDIA including Metro Cities like Mumbai, Delhi, Kolkata, Chennai, Bangalore, Hyderabad, Ahmedabad, Pune, Surat.

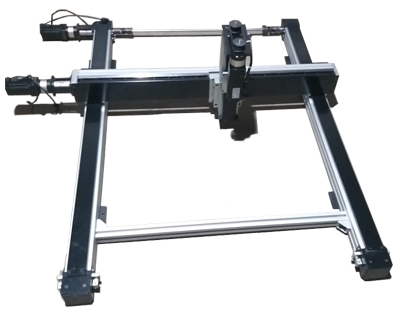

cartesian-robot-1
cartesian-robot-2

Multi Axis Systems

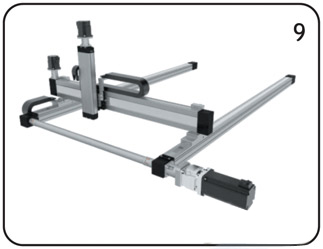

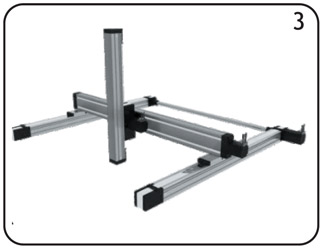

Some Typical System configurations are shown below to illustrate the versatility of the VN Design. VN Mechanics's technical department can assist with applications, enquires or undertake the design of multi axis system

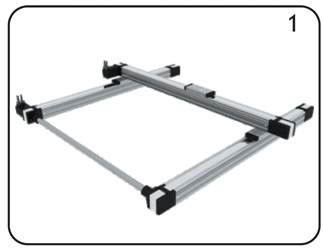

linearunits1

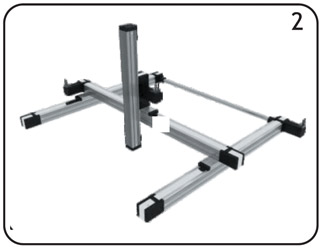

linearunits2
linearunits3

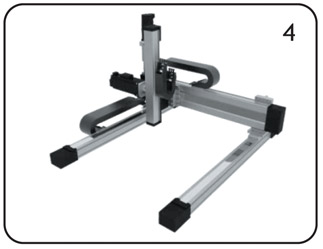

linearunits4

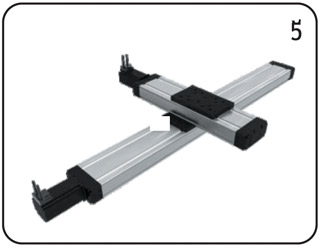

linearunits5

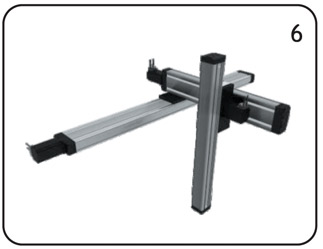

linearunits6
linearunits7

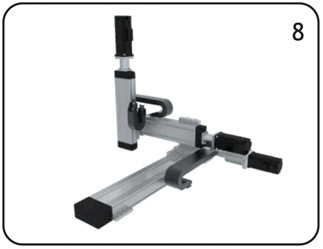

linearunits8
linearunits9

XL 85 /100 Linear Unit described with precision ball screw drive integrated guide rail & compact dimensions. They provide high performance features such as high speed, good accuracy and repeatability. They can easily be combined to multi axis systems. In the linear unit XL 85/100 precision ball screw with reduced backlash of ball nut is used. Dust and contamination protection cover is provided for 1500mm stroke length linear unit. The Aluminum profile includes T- slots for fixing the linear unit as per users suitability. Also these T- slots can be used for Limit switches, Sensors, Reed switches fitment.

The Cartesian Robotics

Cartesian Robots are used to automate a wide range of tasks in manufacturing and assembly lines in virtually every industry from cell phone production to candy packaging. These Robots are used in assembly, Pick and place. However depending on the work load, Speed and Accuracy required, the above formats (Design) can be used for that particular application. Cartesian Robots excel in multitude of different applications due to their high speed travel, precise multi - axial guidance, wide working envelope and versatility; including packaging, Dispensing, Pelletizing & large scale assembly. Finally Cartesian Robots can be used as Gantries to accomplish tasks using overhead manipulation, which frees and helps simplify the assembly lines.

linearlast1
lastleanear2

Other Applications


Our Services in Nut Shell

  • Understanding Needs of Customer
  • Study the Process of Manufacturing / Production
  • Identify Bottlenecks
  • Design and Develop an Automation Solutions that can maximize Production & Profitability
  • ROI Model to Prove Viability of the Solution
  • Product Viability Study In time Delivery and Long Lasting Relation with our Valued Customers
